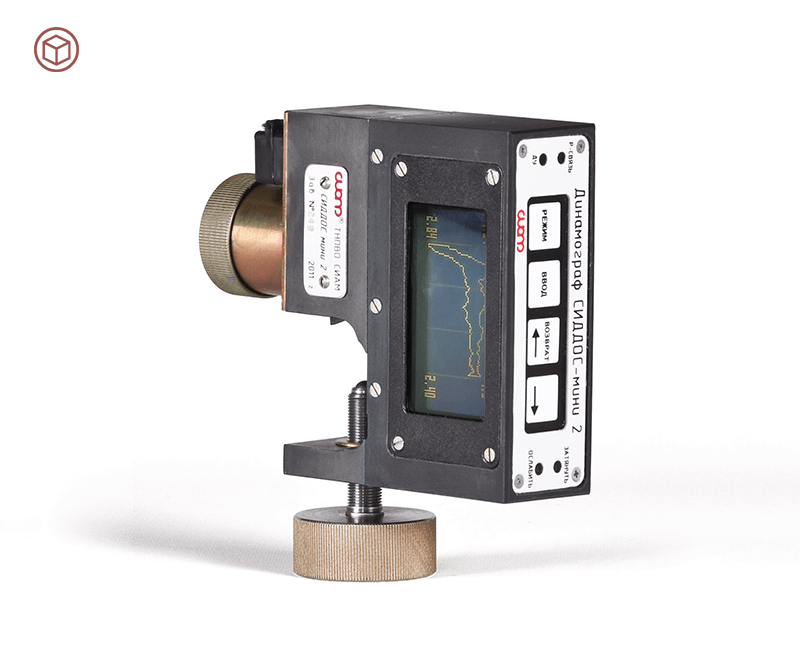

Wireless dynamometer SIDDOS - 2

Currently it is the smallest and lightest single-block unit with an integrated display.


  • maximum simplicity of SRP performance control due to tool installation on a polished rod;
  • conducted diagnostics quality analysis on the display of the tool, main fault diagnostics by means of received dynamometer cards;
  • evaluation of sucker rod pump inflow performance according to the results of computer measurements processing;


  • currently it is the smallest and lightest single-block unit with an integrated display;
  • wireless single-block unit;
  • operating temperature ranges from -40 °C to +50 °C;
  • user-friendly tool due to simplified control and remote control to start diagnostics;
  • shock and vibration resistant body with a shock resistant weight sensor;

Optional set

  • Radio extender “RU-02" for wireless data transfer to laptop and PC


Load measuring range 0-15 000 kgf
Position measuring range 500-7500 mm
Load and position control method indirect
Diameter of the polished rod 16-39 mm
stroke rate from 0,4* to 15 spm
Load resolution 20 kgf
Memory capacity up to 400 dynamometer cards
Battery operating ON-time, min 10 hours
Operating temperature range From –40 °С to +50 °С
Dimensions 145х145х65 mm
Weight 1,5 kg
Data transfer interface RS-232 (COM-port) or USB

*In normal climatic conditions, with full charge


Product specification and user's manual
