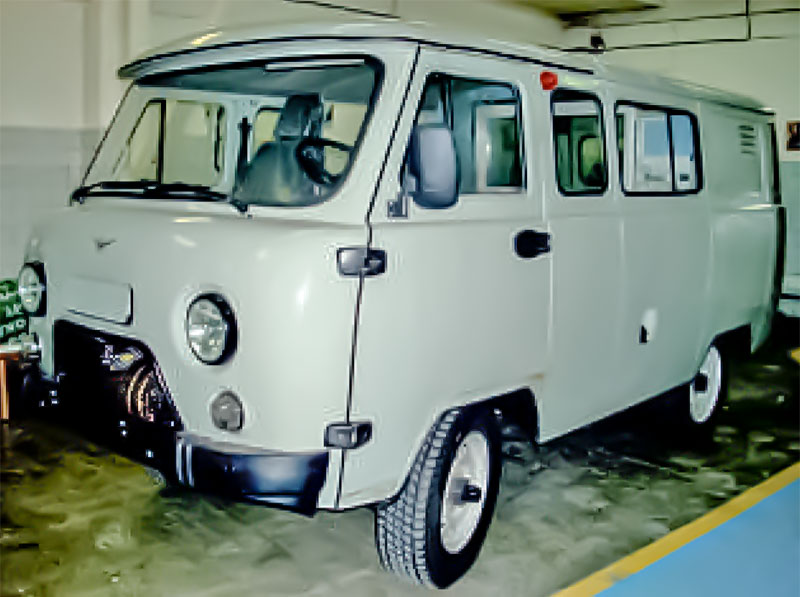

SiamMaster - GDIS 2-7 UAZ Fermer
Features
- electric-driven electronic control «SIAM-LESP-7» slickline winch is used, also there is free fall. Power supply is from one-phase industrial network 220 V, 50 hz;
- AC frequency changer provides infinitely variable speed control of lowering slickline from 7% to nominal;
- change in direction of slickline movements is made by changing rotating direction of a motor shaft - electronic reverse;
- speed, running depth and pulling force is controlled by an electronic meter. The running depth control is duplicated by a mechanical meter;
- there are 2 working areas cabined off with a watch window in the vehicle: an engineering compartment (body) and operator control room (cabin). Slickline is run through wing doors;
- to light the wellhead and a slickline winch , a spotlamp (220 V) and a pilot-lite (12V) are installed;
- there is an amplified telephone;
Specifications
| slickline diameter | From 1.8 to 2.2 mm |
| empty drum traction force | Not less than 3000 N |
| winding speed (according to the pulling force versus speed curve | From 300 to 4000 m/h |
| drum capacity for Slickline 1.8 …2.2 mm | 4000 m |
| Drum mounting type | adjustable |
| induction electric motor | 2.2 kW |
| Transducer power output | 2.2 kW |
| Lab power supply | 220 V, 1 phase, 50 hz |
| Operating temperature range for engineering compartment equipment | From –40 °C to +50 °С |
| Operating temperature range for electronic equipment of control room | from –1 °С to +40 °С |
| Computer operating temperature range | from +5 °С to +40 °С |
| Maximum processing equipment capacity | 5 kW |
| Lab life cycle | 10 years |
| Free fall | yes |
