SiamMaster - GDIS 2-7 Sadko 4x4

Features

simplified kinematic scheme;
an electric-driven electronic control «SIAM-LESP-7» slickline winch is used, also there is free fall. Power supply is from one-phase industrial network 220 V, 50 hz;
AC frequency changer provides infinitely variable speed control of lowering slickline from 7% to nominal;
change in direction of slickline movements is made by changing rotating direction of a motor shaft - electronic reverse;
speed, running depth and pulling force is controlled by an electronic meter. The running depth control is duplicated by a mechanical meter.

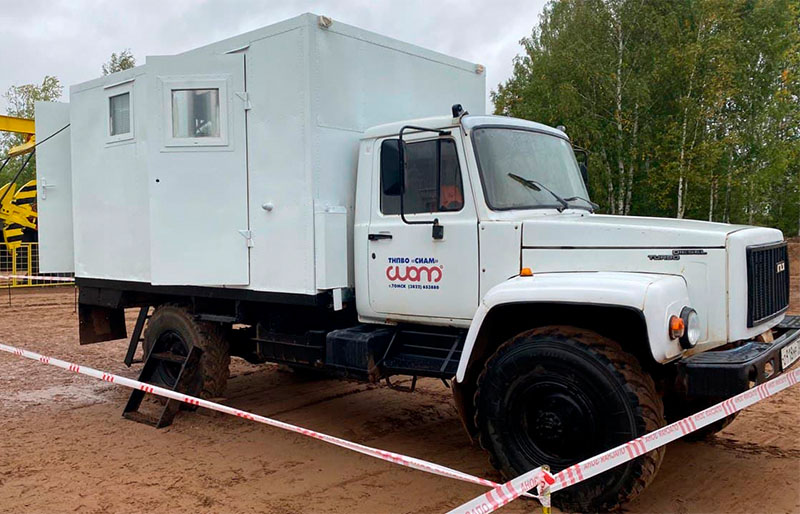

there are 2 working areas cabined off with a watch window in the vehicle: an engineering compartment and operator control room. There is a small size door between these rooms. Slickline is run through van truck splitdoors.
an engineering compartment is equipped with an oil-based heater 220 V in addition to self-contained heaters 24 V (diesel fuel);
to light the wellhead and a slickline winch, 220 V line-operated spotlamps are installed;
there is an amplified telephone;
to improve working conditions, the following equipment is installed: an air-conditioner, a washstand with a water heater, a wardrobe, sleeping berths, a chest, an operator seat and so on (optional);
it is equipped with a hoisting device to change a drum (optional);

Slickline diameter	From 1.8 to 2.2 mm
Empty drum traction force	Not less than 3000 N
Winding speed (according to the pulling force versus speed curve)	from 300 to 4000 m/h
Drum capacity for slickline 1.8 … 2.2 mm	4000 m
Drum mounting type	adjustable
Induction electric motor	2.2 kW
Transducer power output	2.2 kW
Lab power supply	220 V, 1 phase, 50 hz
Operating temperature range for engineering compartment equipment	from –40 °С to +50 °С
Operating temperature range for electronic equipment of control room	from –1 °С to +40 °С
Computer operating temperature range	from +5 °С to +40 °С
Maximum processing equipment capacity	5 kW
Lab life cycle	10 years
Free fall	yes
