SiamMaster - GDIS 2-10
Features

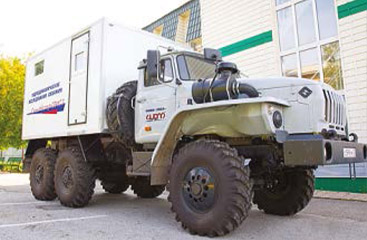

- A van truck on an automobile base such as GAZ Sadko, URAL, KAMAZ et.
- Mobile lab is equipped with slickline winches «SIAM-LESP-10», «SIAM-LESP-11» and «SIAM-LESP-12».
Specifications «SIAM-LESP-10» / «SIAM-LESP-11» / «SIAM-LESP-12»
| Slickline diameter | 1.8-3.0 mm |
| Empty drum traction force | not less than 3 000 N/ 4 000 N/ 5 500 N |
| Full drum winding speed | from 100 to 550 / 7000 / 45000 m/h |
| Drum capacity for slickline 1.8 mm | 12000/14000/12000 m |
| Drum capacity for slickline 2.5 mm | 6000/8000/6000 m |
| Drum capacity for slickline 3.0 mm | 6000/6000/4000 m |
| Clutch | + hydraulic |
| Induction drum motor | 2.2/4/2.2 kW (1 phase 220V) |
| Induction spooler motor | 0.12 kW (1 phase 220V) |
| Lab power supply: synchronous generator from additional engine pto | 220 V, 1 phase, 50 hz |
| Operating temperature range for engineering compartment equipment | From –40 °С to +50 °С |
| Operating temperature range for electronic equipment of control room | from –1 °С to +40 °С |
